1658.0000 | SCHURTER
Jack C21, 3 pole, cable assembly, screw connection, 1.5 mm², black, 1658.0000
Unit Price (€ / pc.)
11.6382 € *
Available: 52 pcs.
Total Price:
11.64 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6382 €
10 pcs.
10.8409 €
50 pcs.
9.9722 €
100 pcs.
9.0559 €
*incl. VAT plus shipping costs
Subject to prior sale
Jack, 1658.0000, SCHURTER

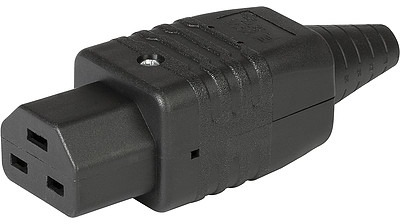

IEC Connector C21, for very hot conditions 155°C, Rewireable, Straight.
Features
- Cord connector straight

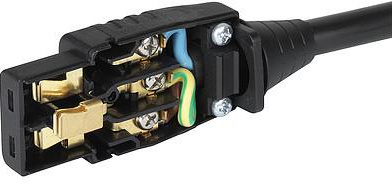

- Rewireable cable assembly
- Protection class: 1
- Housing material: Thermoplastic, black, UL 94V-0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 155 °C | |
| Power switch available | No | |
| Colour | black | |
| Assembly | cable assembly | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 20 A | |
| Cable diameter | 16 mm | |
| Fuse holder present | No | |
| Design | straight | |
| IEC designation | C21 | |
| Connection | screw connection | |
| Switch illuminated | No | |
| Product type | jack | |
| Pin number | 3 pole | |
| Type of locking | No | |
| Rated current IEC | 16 A | |
| Cable cross-section | 1.5 mm² | |
| Line filter present | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
