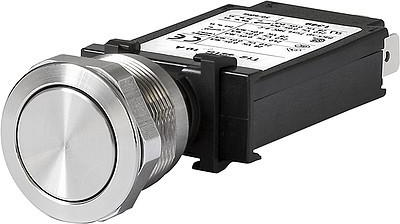

4410.9018 | SCHURTER

Circuit breaker, 1 pole, T characteristic, 16 A, 28 V (DC), 240 V (AC), screw connection, panel mounting, IK07, 4410.9018

Order No.: 59P6577
EAN: 4099889141085
MPN:
4410.9018
T12-222-16 MSM22ST
Series: T12-MSM
4410.9018 SCHURTER Device Circuit Breakers
Image may differ
Unit Price (€ / pc.)
31.6421 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
31.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.6421 €

Thermal circuit breaker, 4410.9018, SCHURTER

The 4410.9018 is a thermal-magnetic circuit breaker for equipment and it is a threaded neck type with a manual switch button.

Features

  • Compact design
  • Positively trip-free release
  • Different mounting possibilities
  • High dielectric strength

Applications

  • Power tools
  • Household equipment
  • Power supplies and chargers
  • Industrial appliances
Technical specifications
Connection Schraubanschluss
Tripping characteristics T
Type of mounting Panelmontage
Actuator Druckknopf
Rated voltage (AC) 240 V
Rated voltage (DC) 28 V
Rated current 16 A
Pin number 1-polig
Product type Schutzschalter
Degree of protection (IP) IK07
Logistics
Country of origin CZ
Customs tariff number 85362010
MSL MSL 1
Original Packaging Karton mit 10 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
