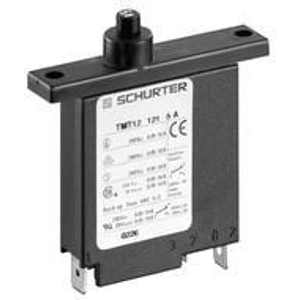

4410.0516 | SCHURTER
Circuit breaker, 1 pole, F characteristic, 5 A, 28 V (DC), 240 V (AC), screw connection, mounting flange, IP40, 4410.0516
Device circuit breaker, 4410.0516, SCHURTER
The 4410.0516 is a thermal-magnetic circuit breaker that contains two different switching mechanisms, a bimetal switch and an electromagnet.
Features
- Fast tripping characteristic
- Positively trip-free release
- Different mounting possibilities
- High dielectric strength
Applications
- Power supplies
- Uninterruptible power supply
- Power tools
- Household appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | circuit breaker | |
| Tripping characteristics | F | |
| Pin number | 1 pole | |
| Rated current | 5 A | |
| Rated voltage (DC) | 28 V | |
| Rated voltage (AC) | 240 V | |
| Connection | screw connection | |
| Type of mounting | mounting flange | |
| Actuator | push button | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| MSL | MSL 1 |
| Country of origin | CZ |
| Original Packaging | Carton with 20 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
