4404.0063 | SCHURTER
Circuit breaker, 1 pole, T characteristic, 12 A, 48 V (DC), 240 V (AC), faston plug 6.3 x 0.8 mm, snap-in, IP40, 4404.0063
Unit Price (€ / pc.)
1.9278 € *
Standard delivery time from the manufacturer is: 19 Weeks

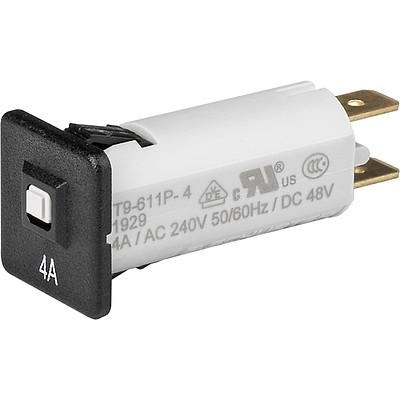

Thermal circuit breaker, 4404.0063, SCHURTER
The 4404.0063 is a thermal-magnetic circuit breaker for equipment and it is a snap-in type with one pole.
Features
- Compact design
- Cycling trip-free release
- Different mounting possibilities
- Reset type
Applications
- Power tools
- Household appliances
- Power supplies
- Industrial appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 240 V | |
| Rated current | 12 A | |
| Tripping characteristics | T | |
| Type of mounting | snap-in | |
| Connection | faston plug 6.3 x 0.8 mm | |
| Degree of protection (IP) | IP40 | |
| Actuator | push button | |
| Product type | circuit breaker | |
| Pin number | 1 pole | |
| Rated voltage (DC) | 48 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 100 pieces |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
