3-101-230 | SCHURTER

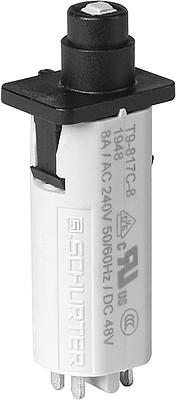

Circuit breaker, 1 pole, T characteristic, 10 A, 48 V (DC), 240 V (AC), THT, PCB mounting, IP40, 3-101-230
Unit Price (€ / pc.)
1.9516 € *
Standard delivery time from the manufacturer is: 15 Weeks
Device circuit breaker, 3-101-230, SCHURTER
The 3-101-230 is a thermal circuit breaker that has a circuit protection device and it contains an alloy reed, two precious metal contacts and the interconnecting terminals.
Features
- Cycling trip-free release
- Compact design
- Different mounting possibilities
- High dielectric strength
Applications
- Power supplies
- Uninterruptible power supply
- Power tools
- Industrial appliances
- HVAC
- Household appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | THT | |
| Rated voltage (DC) | 48 V | |
| Rated voltage (AC) | 240 V | |
| Type of mounting | PCB mounting | |
| Product type | circuit breaker | |
| Tripping characteristics | T | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP40 | |
| Actuator | push button | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Carton with 100 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
