KML 7848 AU / PZ / 150 / SW | SCHÜTZINGER

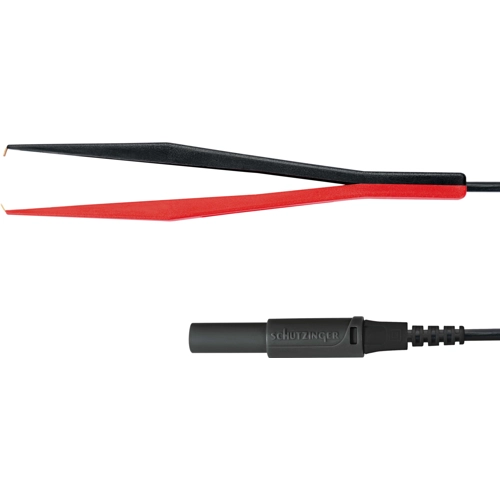

Kelvin measuring lead with (plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1.5 m, black, PA, KML 7848 AU / PZ / 150 / SW
Unit Price (€ / pc.)
38.3180 € *
Standard delivery time from the manufacturer is: On Request
Test lead, KML 7848 AU / PZ / 150 / SW, SCHÜTZINGER
1 coaxial safety lamella-basket plug, assembled on coaxial cable RG 174/U and tweezer.
This kelvin measuring lead has been especially developed for four-wire measurement.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | plug, spring-loaded, straight | |
| Cable length | 1.5 m | |
| Touch safe | Yes | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Colour | black | |
| contact surface | gold-plated | |
| Stackable | No | |
| Material | PA | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 1 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
