KML 7528 / 2ZA / 4X0.22 / 70 | SCHÜTZINGER
Kelvin measuring lead with (2 x kelvin pliers, straight) to (4 x 4 mm plug, spring-loaded, straight), 700 mm, black/red/white, PVC, 0.22 mm², KML 7528 / 2ZA / 4X0.22 / 70
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
213.6288 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
213.63 € *
Price list
Quantity
Price per unit*
1 pcs.
213.6288 €
3 pcs.
205.4178 €
5 pcs.
197.2068 €
*incl. VAT plus shipping costs
Subject to prior sale

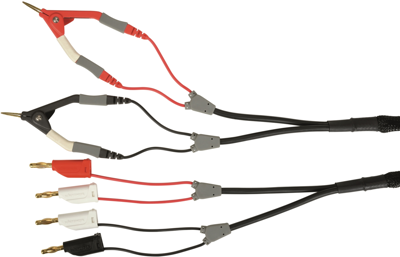

Kelvin measuring lead with pincers
Features
- 4 lamella-basket plugs, stackable, assembled on flexible PVC cable 0.22 mm² and 2 pincers
- this kelvin measuring lead has been especially developed for four-wire measurement
- pincer opening 15 mm max
- cable = 0.22 mm² PVC double-insulated
- contact parts = gold-plated
- insulation = PA (Polyamid); PP (Polypropylen)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | 2 x kelvin pliers, straight | |
| Connection (2) | 4 x 4 mm plug, spring-loaded, straight | |
| Cable length | 700 mm | |
| Cable cross-section | 0.22 mm² | |
| Colour | black/red/white | |
| Material | PVC | |
| contact surface | gold-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 1 A | |
| Touch safe | No | |
| Stackable | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
