SFK 8500 L NI / AS / SW | SCHÜTZINGER
4 mm plug, solder connection, 2.5 mm², CAT II, black, SFK 8500 L NI / AS / SW
Unit Price (€ / pc.)
4.0222 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.7961 €
50 pcs.
3.5581 €
100 pcs.
3.3201 €
500 pcs.
3.0821 €
*incl. VAT plus shipping costs
Subject to prior sale

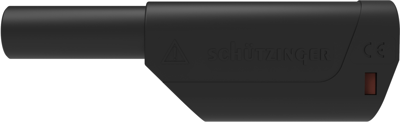

Safety lamella-basket plug, SFK 8500 L NI / AS / SW, SCHÜTZINGER
Safety lamella-basket plug straight, with inline socket and solder terminal for cables up to 2.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated category | CAT II | |
| max. Cable diameter | 4 mm | |
| Colour | black | |
| Connection | solder connection | |
| Rated Voltage | 1000 V | |
| Cable cross-section | 2.5 mm² | |
| Rated current | 32 A | |
| diameter | 4 mm | |
| Stackable | No | |
| contact surface | nickel-plated | |
| Version | plug | |
| Touch safe | Yes | |
| Length | 47.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
