SEPB 8522 NI / SW | SCHÜTZINGER

2 mm socket, flat plug connection, mounting Ø 8 mm, CAT II, black, SEPB 8522 NI / SW

Order No.: 86F0392
EAN: 4099889676051
MPN:
SEPB 8522 NI / SW
99018441
Series: SEPB
SEPB 8522 NI / SW SCHÜTZINGER Laboratory Connectors
Image may differ

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
3.6771 € *
Available: 10 pcs.
Total Price:
3.68 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6771 €
10 pcs.
3.4748 €
50 pcs.
3.2725 €
100 pcs.
3.0702 €
500 pcs.
2.8560 €
*incl. VAT plus shipping costs
Subject to prior sale

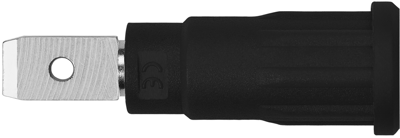

Safety press-in socket Ø 2 mm

Features

  • For pressing into panels up to 6 mm thick
  • Hole Metal: Ø 8.3±0.05 mm, Plastic: Ø 8+0.2 mm
  • Metal panels: ≥ 1 mm
  • Plastic panels: ≥ 2 mm
  • Contact parts: nickel-plated
  • Insulation: PA 6.6 (Polyamid)
  • Rated voltage: 600 V CAT II
  • Rated current: 10 A
Technical specifications
Filter Property Value
Version press-in socket
diameter 2 mm
Colour black
Connection flat plug connection
contact surface nickel-plated
Installation diameter 8 mm
Rated Voltage 600 V
Rated current 10 A
Rated category CAT II
Touch safe Yes
Length 29.2 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin FR
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
