SEB 7077 NI / RT | SCHÜTZINGER

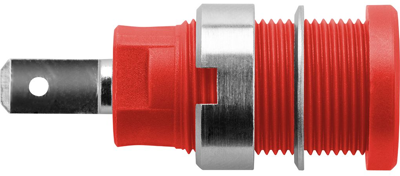

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, red, SEB 7077 NI / RT
Unit Price (€ / pc.)
1.5708 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.57 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5708 €
10 pcs.
1.4875 €
50 pcs.
1.4042 €
100 pcs.
1.3090 €
500 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety threaded socket Ø 4 mm
Features
- For fixture in panels up to 6 mm thick
- Fixed by: slotted nut M12 x 0.75 and spring washer
- Hole Ø 12.2+0.1 mm
- Contact parts: nickel-plated
- Insulation: PA 6.6 (Polyamid)
- Rated voltage: 1000 V CAT II
- Rated current: 24 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated category | CAT III | |
| Colour | red | |
| Connection | flat plug connection | |
| Rated Voltage | 1000 V | |
| Rated current | 24 A | |
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Version | socket | |
| Installation diameter | 12.2 mm | |
| Touch safe | Yes | |
| Length | 33 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
