SAB 7560 NI / GN | SCHÜTZINGER

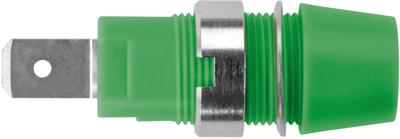

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, green, SAB 7560 NI / GN
Unit Price (€ / pc.)
5.5573 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5.56 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5573 €
10 pcs.
5.2479 €
50 pcs.
4.9385 €
100 pcs.
4.6291 €
250 pcs.
4.3078 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety threaded socket, SAB 7560 NI / GN, SCHÜTZINGER
Features
- For fixture in panels up to 6 mm thick
- Fixed by: slotted nut M12 x 0.75 and spring washer
- Hole Ø 12.2+0.1 mm
- Flat tab can be bent up to 90° once
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated category | CAT III | |
| Colour | green | |
| Connection | flat plug connection | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| diameter | 4 mm | |
| contact surface | nickel-plated | |
| Version | socket | |
| Installation diameter | 12.2 mm | |
| Touch safe | Yes | |
| Length | 41 mm |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
