SAB 6922 NI / VI | SCHÜTZINGER
4 mm socket, screw connection, mounting Ø 12.2 mm, CAT III, purple, SAB 6922 NI / VI
Unit Price (€ / pc.)
3.2487 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.25 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2487 €
10 pcs.
3.0583 €
50 pcs.
2.8798 €
100 pcs.
2.7013 €
500 pcs.
2.5228 €
*incl. VAT plus shipping costs
Subject to prior sale

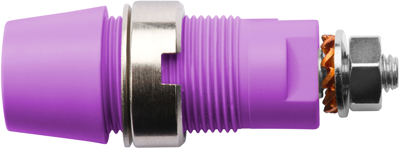

Panel sockets, 4.0 mm, type Schützinger SAB 6922.

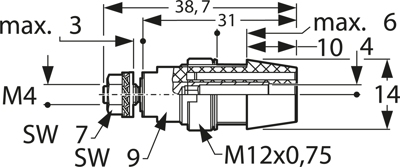

To IEC 61010, for 4.0 mm safety laboratory plugs, for installation in front panels with thickness up to 6.0 mm, mounting by means of M 12 x 0.75 slotted nut and spring washer, with M 4 thread connection; Diameter mounting hole: 12.1 mm. Housing material: PA 6.6, UL 94 V-2. Contact parts: gold-plated or nickel-plated. Rated voltage: 1000 V, CAT III. Rated current: 32 A. Contact resistance: 5.0 mohm (gold-plated)/7.0 mohm (nickel-plated). Operating temperatures: –25 to +80 °C.
Nickel-plated.
Technical attributes (type, color): SAB 6922 Ni/VI, purple
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Version | socket | |
| Length | 38 mm | |
| contact surface | nickel-plated | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Rated current | 32 A | |
| Colour | purple | |
| Rated Voltage | 1000 V | |
| Installation diameter | 12.2 mm | |
| Rated category | CAT III |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
