IBU 401 NI / GE | SCHÜTZINGER

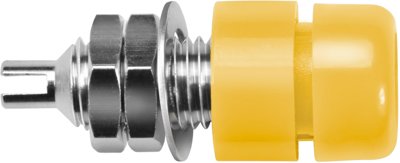

4 mm socket, solder connection, mounting Ø 7.5 mm, yellow, IBU 401 NI / GE
Unit Price (€ / pc.)
1.4280 € *
Available: 154 pcs.
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
10 pcs.
1.3209 €
50 pcs.
1.2138 €
100 pcs.
1.1424 €
500 pcs.
1.0710 €
*incl. VAT plus shipping costs
Subject to prior sale
• for insulated fixture
• with screwed insulated head
• hole Ø 7.5 mm
• for fixture in panels up to 3 mm thick
• contact parts nickel-plated
• insulation PA 6 (Polyamid)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Colour | yellow | |
| Version | socket | |
| Connection | solder connection | |
| diameter | 4 mm | |
| Touch safe | No | |
| Installation diameter | 7.5 mm | |
| contact surface | nickel-plated | |
| Length | 24.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
