IBU 2011 NI / SW | SCHÜTZINGER

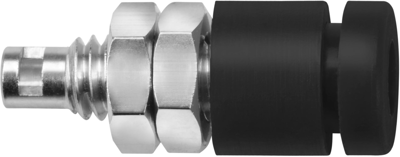

2 mm socket, solder connection, mounting Ø 5.1 mm, black, IBU 2011 NI / SW

Order No.: 86F0045
EAN: 4099889674439
MPN:
IBU 2011 NI / SW
99001834
Series: IBU
IBU 2011 NI / SW SCHÜTZINGER Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.9159 € *
Available: 104 pcs.
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9159 €
10 pcs.
1.7612 €
50 pcs.
1.6303 €
100 pcs.
1.5232 €
500 pcs.
1.4399 €
*incl. VAT plus shipping costs
Subject to prior sale

• for insulated fixture

• with moulded head

• hole Ø 5.1 mm

• contact parts nickel-plated

• solder terminal up to 0.75 mm²

• insulation PA 6.6 (Polyamid)

Technical specifications
Filter Property Value
contact surface nickel-plated
diameter 2 mm
Connection solder connection
Rated Voltage 30 VAC/60 VDC
Installation diameter 5.1 mm
Touch safe No
Rated current 10 A
Version socket
Colour black
Length 17.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
