HSEB 3125 L NI / RT | SCHÜTZINGER
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, red, HSEB 3125 L NI / RT
Unit Price (€ / pc.)
4.7481 € *
Available: 34 pcs.
Total Price:
4.75 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7481 €
10 pcs.
4.4982 €
50 pcs.
4.2483 €
100 pcs.
3.9984 €
500 pcs.
3.7604 €
*incl. VAT plus shipping costs
Subject to prior sale

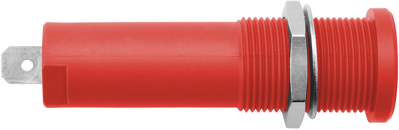

Safety socket, HSEB 3125 L NI / RT, SCHÜTZINGE
High volage safety threaded socket for fixture in panels up to 13.5 mm thick at max 5 kV and up to 8 mm thick at max 6 kV.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Length | 48 mm | |
| contact surface | nickel-plated | |
| Colour | red | |
| Rated category | CAT IV | |
| Installation diameter | 12.2 mm | |
| Rated current | 16 A | |
| Connection | flat plug connection | |
| Touch safe | Yes | |
| Version | socket | |
| Rated Voltage | 6000 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
