FK 15 S NI / RT | SCHÜTZINGER

4 mm plug, screw connection, 1.0 mm², red, FK 15 S NI / RT

Order No.: 12F271
EAN: 4099889664430
MPN:
FK 15 S NI / RT
99022517

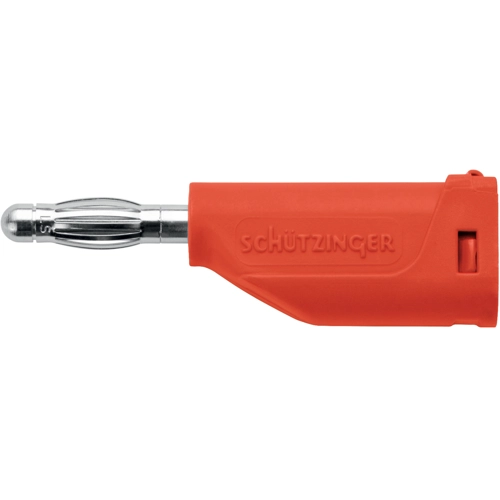

FK 15 S NI / RT SCHÜTZINGER Laboratory Connectors Image 1
FK 15 S NI / RT SCHÜTZINGER Laboratory Connectors Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
4 mm plug, screw connection, 1.0-2.5 mm², red, FK 15 S NI / RT
4 mm plug, screw connection, 1.0-2.5 mm², red, FK 15 S NI / RT
Order No.: 22F7377
Manufacturer: SCHÜTZINGER
per pc. 2.0825 € *

Laboratory plugs, 4.0 mm, type Schützinger FK 15 S Ni/1/.

With add-on axial jack; Screw connection: up to 1.0 mm². Nickel-plated contact parts. Grip: PE. Rated voltage: 33 VAC/70 VDC. Rated current: 16 A. Contact resistance: 3.0 mohm. Operating temperatures: –25 to +75 °C.

Technical attributes (type, color): FK 15 S Ni/1/RT, red

Technical specifications
Colour red
contact surface nickel-plated
diameter 4 mm
Length 44 mm
Cable cross-section 1.0 mm²
Touch safe No
Version plug
Connection screw connection
Rated Voltage 30 VAC/60 VDC
Rated current 16 A
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Replacement

Order No.:

 22F7377

Manufacturer SKU:

 FK 15 S NI / RT



Standard delivery time from the manufacturer is: 3 Weeks
2.08 € per pc. *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.0825 €
10 pcs.
1.9635 €
50 pcs.
1.8445 €
100 pcs.
1.7255 €
250 pcs.
1.6065 €
