BU 405 NI | SCHÜTZINGER
4 mm socket, solder connection, mounting Ø 6.1 mm, silver, BU 405 NI
Unit Price (€ / pc.)
1.0829 € *
Available: 8 pcs.
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
20 pcs.
0.9996 €
60 pcs.
0.9282 €
100 pcs.
0.8687 €
200 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale
Laboratory connector, BU 405 NI, SCHÜTZINGE

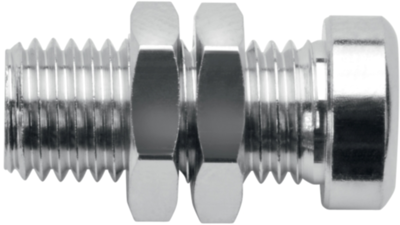

The BU 405 NI is a threaded socket without insulation that is used for fixture in panels
Features
- High rated voltage
- High rated current
- Max torque fastening 150 Ncm
- Nickel plated contacts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| contact surface | nickel-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 6.1 mm | |
| Length | 16 mm | |
| Connection | solder connection | |
| Colour | silver |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
