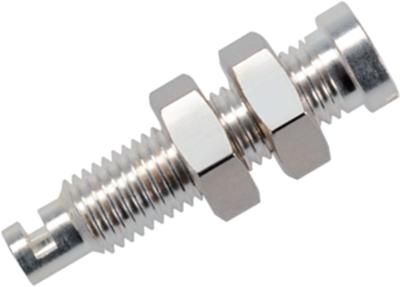

BU 24 AG | SCHÜTZINGER
2 mm socket, solder connection, mounting Ø 4 mm, silver, BU 24 AG
No longer available from manufacturer
Unit Price (€ / pc.)
1.1186 € *
Available: 1 pcs.
Panel sockets, 2.4 mm, type Schützinger BU 24 AG.
For 2.4 mm plugs, made of silver-plated brass, solder connection up to 0.75 mm²; Mounting hole: 4.1 mm. Rated voltage: 30 VAC/60 VDC. Rated current: 12 A. Contact resistance: max. 3.0 mohm. Operating temperatures: –40 to +110 °C.
Type: BU 24 AG, panel socket
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| diameter | 2 mm | |
| Colour | silver | |
| Connection | solder connection | |
| contact surface | silver-plated | |
| Installation diameter | 4 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 12 A | |
| Touch safe | No | |
| Length | 18 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
