SDK 801 / GNGE | SCHÜTZINGER
Quick pressure clamp, yellow/green, 300 V, 16 A, solder connection/cable lug, nickel-plated, SDK 801 / GNGE
Unit Price (€ / pc.)
7.7826 € *
Available: 4 pcs.
Total Price:
7.78 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7826 €
10 pcs.
7.3304 €
50 pcs.
6.8782 €
100 pcs.
6.4141 €
250 pcs.
5.9619 €
*incl. VAT plus shipping costs
Subject to prior sale

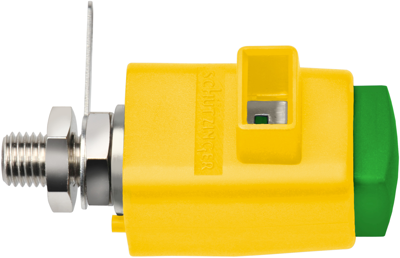

Quick pressure clamp, SDK 801 / GNGE, SCHÜTZINGER
Quick pressure clamp for quick and secure contacting of strands and wires, without tools, vibration-resistant due to inserted gill plate, easy to release. Non-insulated, for non-metallic front panels (0.8 to 5.0 mm thick) with yellow housing and green push-button.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 6.2 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 300 V | |
| Connection | solder connection/cable lug | |
| Length | 42.5 mm | |
| Rated current | 16 A | |
| Colour | yellow/green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bag with 20 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
