SDK 5230 / BR | SCHÜTZINGER
Quick pressure clamp, brown, 300 V, 16 A, solder connection/cable lug, nickel-plated, SDK 5230 / BR
Unit Price (€ / pc.)
10.1269 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.13 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1269 €
10 pcs.
9.5438 €
50 pcs.
8.9607 €
100 pcs.
8.3895 €
250 pcs.
7.8064 €
*incl. VAT plus shipping costs
Subject to prior sale

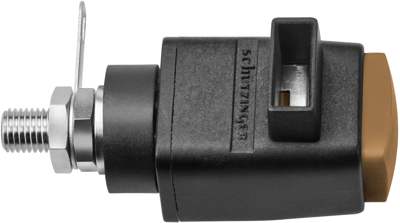

Quick pressure clamp, SDK 5230 / BR, SCHÜTZINGER
Quick pressure clamp for quick and secure contacting of strands and wires, without tools, vibration-resistant thanks to gill plate, easy to release. Fully insulated, for metal front panels (0.8 to 5.0 mm thick).

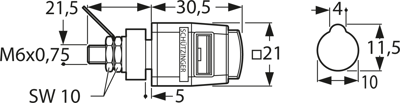

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | brown | |
| Installation diameter | 10 mm | |
| contact surface | nickel-plated | |
| Length | 52 mm | |
| Connection | solder connection/cable lug | |
| Rated Voltage | 300 V | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
