SDK 504 / GNGE | SCHÜTZINGER

Quick pressure clamp, yellow/green, 30 VAC/60 VDC, 16 A, solder connection/cable lug, nickel-plated, SDK 504 / GNGE

Order No.: 30F3567
EAN: 4099889681154
MPN:
SDK 504 / GNGE
99004192
Series: SDK

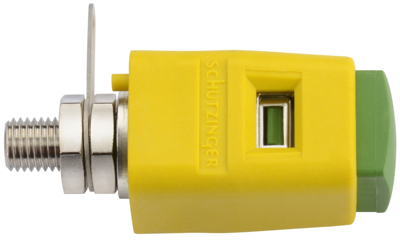

SDK 504 / GNGE SCHÜTZINGER Binding Posts Image 1

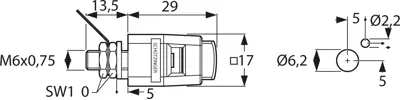

SDK 504 / GNGE SCHÜTZINGER Binding Posts Image 2
Image may differ
Unit Price (€ / pc.)
5.8786 € *
Available: 7 pcs.
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.6168 €
50 pcs.
5.2479 €
100 pcs.
4.9504 €
500 pcs.
4.7481 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick pressure clamp, SDK 504 / GNGE, SCHÜTZINGER

Quick pressure clamp for quick and secure contacting of strands and wires, without tools, vibration-resistant due to inserted gill plate, easy to release. Non-insulated, for non-metallic front panels (0.8 to 5.0 mm thick) with yellow housing and green push-button.

Technical specifications
Filter Property Value
Connection solder connection/cable lug
Colour yellow/green
Rated Voltage 30 VAC/60 VDC
Length 42.5 mm
contact surface nickel-plated
Rated current 16 A
Installation diameter 6.2 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 20 pieces
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
