ESD 6554 / BR | SCHÜTZINGER
Quick pressure clamp, 12.5 mm, brown, 30 VAC/60 VDC, 5 A, flat plug/solder connection, nickel-plated, ESD 6554 / BR
Unit Price (€ / pc.)
4.6648 € *
Available: 7 pcs.
Next delivery: 40 pcs. on 2025-07-15
Total Price:
4.66 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6648 €
20 pcs.
4.2364 €
60 pcs.
3.9151 €
100 pcs.
3.6057 €
500 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale

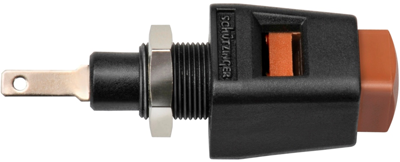

Quick pressure clamp, ESD 6554 / BR, SCHÜTZINGER
Quick pressure clamp for quick and secure contacting of strands and wires, without tools, vibration-resistant due to inserted gill plate, easily detachable. Fully insulated, for metal front panels (0.8 to 4.0 mm thick).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 12.5 mm | |
| Colour | brown | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 5 A | |
| Installation diameter | 8.2 mm | |
| Connection | flat plug/solder connection | |
| contact surface | nickel-plated | |
| Length | 38.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 20 pieces |
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
