EF200R5 | SCHROFF
Filter fan, 230 V, 145 x 145 x 70 mm, 60 m³/h, 44 dB, slide bearing, SCHROFF EF200R5
Order No.: 85H6755
EAN: 4036088218897
MPN:
EF200R5
Unit Price (€ / pc.)
87.9767 € *
Standard delivery time from the manufacturer is: 2 Weeks
Filter fan air flow, EF200R5, SCHROFF

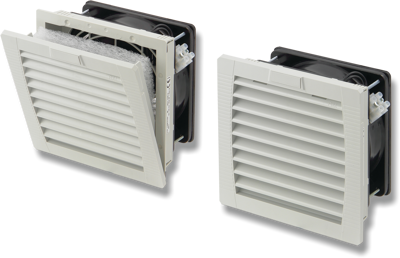

This vertical filter fan, EF, with a IP 54 protection degree, is easy to install thanks to its click-in feature. Unnecessary downtime is avoided, since water and dust are prevented from entering the enclosure through the filter, and the reliable fan motor will ensure constant ventilation.
Features
- The filter fan is reliable due to its high quality motor, as well as being easy to install
- The click-in feature reduces the customer's labour cost due to the ease of installation
- The filter fan should be installed together with at least one exhaust filter, EFA
- Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| Depth | 70 mm | |
| Width | 145 mm | |
| Volume flow | 60 m³/h | |
| Rated voltage | 230 V | |
| Type of bearing | slide bearing | |
| Height | 145 mm | |
| Sound pressure level | 44 db |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
