EF100R5 | SCHROFF

Name: Filter fan, 230 V, 109 x 109 x 62 mm, 19 m³/h, 33 dB, slide bearing, SCHROFF EF100R5
Brand: SCHROFF
SKU: 85H6752
Availability: InStock

Filter fan, 230 V, 109 x 109 x 62 mm, 19 m³/h, 33 dB, slide bearing, SCHROFF EF100R5

Order No.: 85H6752

EAN: 4036088218873

MPN:

EF100R5

Image may differ

Key Specification:

Rated voltage 230 V

Width 109 mm

Height 109 mm

Depth 62 mm

Volume flow 19 m³/h

Download Datasheet Technical specifications

Unit Price (€ / pc.)

62.2608 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

62.26 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

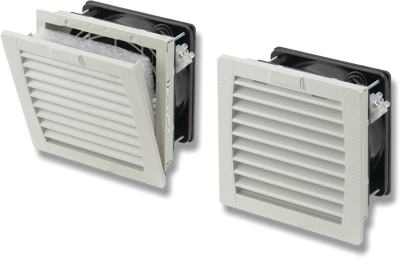

Filter fan air flow, EF100R5, SCHROFF

This vertical filter fan, EF, with a IP 54 protection degree, is easy to install thanks to its click-in feature. Unnecessary downtime is avoided, since water and dust are prevented from entering the enclosure through the filter, and the reliable fan motor will ensure constant ventilation.

Features

The filter fan is reliable due to its high quality motor, as well as being easy to install
The click-in feature reduces the customer's labour cost due to the ease of installation
The filter fan should be installed together with at least one exhaust filter, EFA
Component failure and unnecessary downtime is avoided as water and dust are prevented from entering the enclosure and the reliable motor ensures that there is constant ventilation

Technical specifications

Filter	Property	Value
	Degree of protection (IP)	IP54
	Depth	62 mm
	Sound pressure level	33 db
	Volume flow	19 m³/h
	Width	109 mm
	Height	109 mm
	Type of bearing	slide bearing
	Rated voltage	230 V
