23001-005 | SCHROFF
Backplane, 5 slots, (W x H) 100.2 x 128.5 mm, 3 U, 23001-005
Order No.: 85H6803
EAN: 4036088052576
MPN:
23001-005
23001005
Unit Price (€ / pc.)
269.535 € *
Available: 2 pcs.
Backplane, 23001-005, SCHROFF

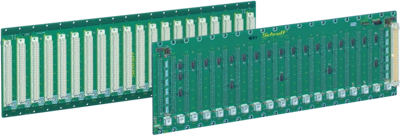

The nVent SCHROFF VMEbus Backplane has outstanding high-frequency noise suppression and very high MTBF values due to ceramic capacitors and SMD fabrication technology.
Features

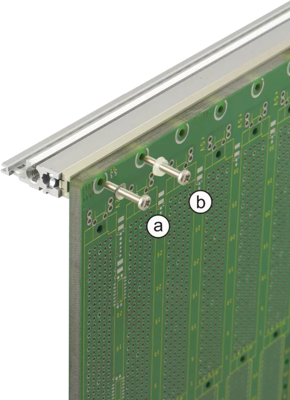

- Connection or isolation between the digital GND and chassis GND can be changed via screw

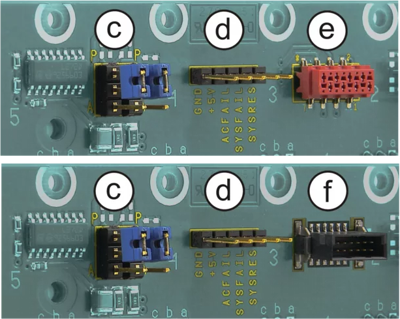

- Termination active/passive, switchable via jumpers; passive termination preset
- Electronic automatic daisy chain (EDC)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| cutting pitch differential | 3 U | |
| Product type | backplane | |
| Height | 128.5 mm | |
| Width | 100.2 mm | |
| Version | 5 slots |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84733020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
