20849-022 | SCHROFF
Filler module, stainless steel, 3 HP, 20849-022
Unit Price (€ / pc.)
22.9670 € *
Standard delivery time from the manufacturer is: 3 Weeks
Filler module, 20849-022, SCHROFF

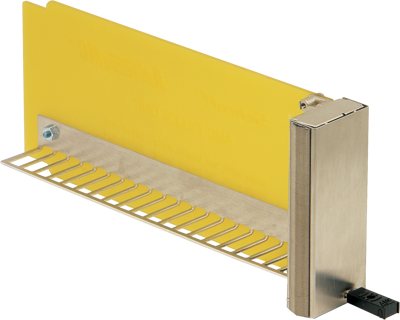

This AdvancedMC filler module consists of a stainless steel front panel without LEDs and has EMC gaskets on the left hand and bottom side. The filler module is fixed into the chassis card guide by a snap in plastic lug. The module can be used to cover an empty slot, to ensure EMC shielding and close the front to seal air leaks into the chassis. These filler modules can be ued in AdvancedMC Carriers and in MicroTCA slots. It doesn’t require a locking bar.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| cutting pitch differential | 3 HP | |
| Material | stainless steel | |
| Product type | filler module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84879090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
