8-1415537-0 | Schrack
Safety relays, 4 Form A (N/O) + 2 Form B (N/C), 24 V (DC), 720 Ω, 8 A, 400 V (AC), 8-1415537-0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
34.0816 € *
Available in 12 Days: 1,733 pcs. - if ordered today
Total Price:
34.08 € *
Price list
Quantity
Price per unit*
1 pcs.
34.0816 €
2 pcs.
31.8801 €
5 pcs.
29.9523 €
10 pcs.
27.8341 €
*incl. VAT plus shipping costs
Subject to prior sale

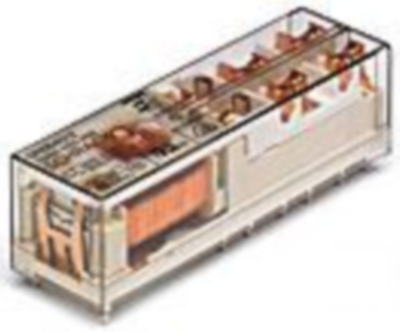

Power Relay, 8-1415537-0, Schrack
Power Relay Type: Force-Guided, Coil Current: .033 A, Coil Magnetic System: Monostable, DC, Coil Power Rating Class: 600 – 800 mW, Coil Power Rating DC: 800 mW, Coil Resistance: 720 Ω, Product Weight: 30 g, Contact Plating Material: Gold Flash, Contact Arrangement: 4 Form A (NO) + 2 Form B (NC), Contact Current Class: 5 – 10 A, Contact Current Rating (Max): 8 A, Contact Material: AgSnO2, Relay Mounting Type: Printed Circuit Board, Product Height: 16.5 mm, Environmental Category of Protection: RTIII, Packaging Method: Box & Tube,Tube, Comment: Well suited for emergency shut-off, machine control, elevator and escalator control, light barrier control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 4 Form A (N/O) + 2 Form B (N/C) | |
| switching current | 8 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 720 Ω | |
| Switching Voltage (AC) | 400 V | |
| Breaking capacity | 2000 VA | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
