9-1419111-1 | Schrack

Relay, 4 Form C (NO/NC), 230 V (AC), 19.465 kΩ, 6 A, 240 V (AC), monostable, 9-1419111-1

Order No.: 30G8436
EAN: 4099889396386
MPN:
9-1419111-1
PT570730
Series: PT

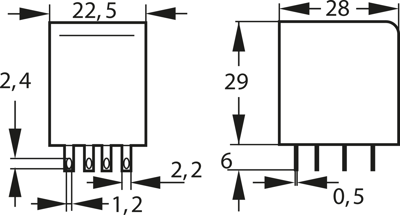

9-1419111-1 Schrack Industrial Relays Image 1

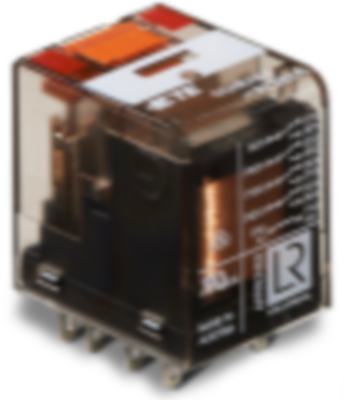

9-1419111-1 Schrack Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
9.8770 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.88 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8770 €
10 pcs.
8.6989 €
50 pcs.
8.1039 €
150 pcs.
7.7350 €
500 pcs.
7.3542 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature relay, type TE Connectivity/Schrack PT.

General-purpose Relay for 2.8 mm PCB or plug-in terminals. DC or AC voltage. Touch-protected test button and selectable interlock. Mechanical power indicator with white labeling field; Contact type: 2, 3 or 4 CO (single contact). Contact material: AgNi 90/10. Rated voltage: 240 VAC. Rated current: 6.0, 10 or 12 A. Breaking capacity: 1500, 2500 or 3000 VA. Coil/contact dielectric strength: 2500 VRMS. Response/release time: 15/10 ms. Bounce time: 5.0 ms, Connections: 2.8 mm plug-in connections or PCB terminals. Degree of protection: RT II. Degree of soiling: 2. Overvoltage category: III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.

With 4 x CO contacts, type PT570/PT571.

Rated current: 6.0 A. Breaking capacity: max. 1500 VA. Make capacity: 12 A (max. 20 ms).

Technical attributes (type, rated voltage, coil resistance (±10 %, at 230 VAC = ±15%), connection type): 9-1419111-1, 230 VAC, 19465 ohm, tab terminals

Technical specifications
Filter Property Value
switching current 6 A
Connection PCB connection
Contact material AgNi 90/10
Coil voltage (AC) 230 V
Contact type 4 Form C (NO/NC)
Switching Voltage (AC) 240 V
Coil resistance 19.465 kΩ
Coil type monostable
Logistics
Property Value
Country of origin US
Customs tariff number 85364900
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
