9-1393222-1 | Schrack
Relay, 1 Form C (NO/NC), 12 V (DC), 652 Ω, 8 A, 400 V (AC), monostable, 9-1393222-1
Unit Price (€ / pc.)
3.3677 € *
Available in 5 Days: 1,505 pcs. - if ordered today
Total Price:
3.37 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3677 €
10 pcs.
3.1297 €
25 pcs.
2.9155 €
50 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale

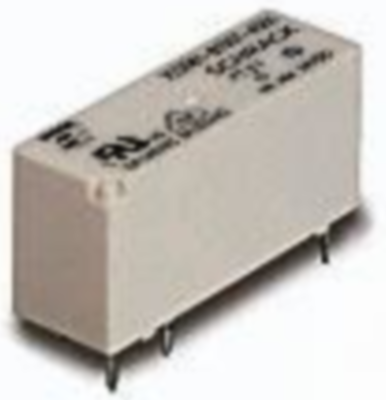

Miniature Power relay, type TE Connectivity/Schrack Miniature Power Relay MSR.
For DC voltage, neutral, monostable, suitable for PCB soldering; Rated/switching voltage: 240 VAC/400 VAC. Switching current: 8.0 A, Breaking capacity: 2000 VA. Response/release time: approx. 6.0/2.5 ms. Ambient temperatures: –40 to +85 °C, Certifications: VDE, UL, CSA.
With 1 x CO, type 1393.
Contact material: AgSnO2.
Technical attributes (type, rated voltage, coil resistance (±10 %)): 9-1393222-1, 12 VDC, 652 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 652 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Connection | PCB connection | |
| switching current | 8 A | |
| Contact material | AgSnO2 | |
| Coil type | monostable | |
| Switching Voltage (AC) | 400 V | |
| Coil voltage (DC) | 12 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
