8-1393243-1 | Schrack
Relay, 2 Form C (NO/NC), 6 V (DC), 90 Ω, 8 A, 400 V (AC), monostable, 8-1393243-1
Unit Price (€ / pc.)
8.7822 € *
Available in 5 Days: 286 pcs. - if ordered today
Total Price:
8.78 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7822 €
5 pcs.
8.3300 €
10 pcs.
7.7945 €
25 pcs.
7.1043 €
*incl. VAT plus shipping costs
Subject to prior sale

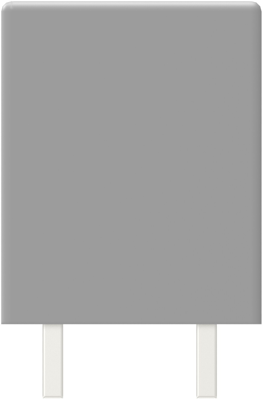

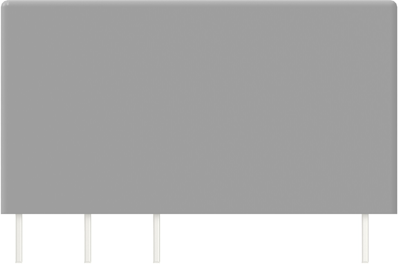

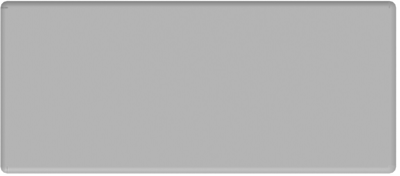

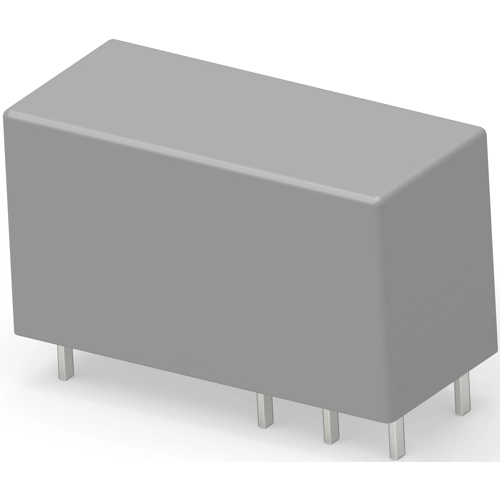

Power relay, 8-1393243-1, Schrack
Power relay, Standard, Monostable, DC, 400 mW Coil Power Rating DC, 90 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Reinforced insulation
Applications
- Boiler control
- Garage door control
- POS automation
- Interface modules
- Timers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 90 Ω | |
| Contact type | 2 Form C (NO/NC) | |
| Connection | plug-in/PCB connection | |
| switching current | 8 A | |
| Contact material | AgNi 90/10 | |
| Coil type | monostable | |
| Switching Voltage (AC) | 400 V | |
| Coil voltage (DC) | 6 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
