8-1393239-7 | Schrack

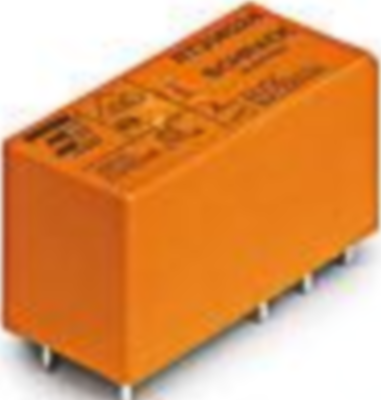

Name: Relay, 1 Form C (NO/NC), 12 V (DC), 240 Ω, 16 A, 400 V (AC), bistable, 8-1393239-7
Brand: Schrack
SKU: 25G2954
Availability: InStock

Relay, 1 Form C (NO/NC), 12 V (DC), 240 Ω, 16 A, 400 V (AC), bistable, 8-1393239-7

Order No.: 25G2954

EAN: 4099889392852

MPN:

8-1393239-7

RT314F12

Series: RT1

Image may differ

Key Specification:

Contact type 1 Form C (NO/NC)

switching current 16 A

Coil voltage (DC) 12 V

Coil resistance 240 Ω

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.5339 € *

Available in 5 Days: 3,372 pcs. - if ordered today

Total Price:

6,800.85 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Power relay, 8-1393239-7, SCHRACK

Features

PCB mount
AC coil and DC coil
5 kV insulation between coil and contacts

Applications

Boiler control
Garage door control
Packaging machines
Interface modules

Technical specifications

Filter	Property	Value
	switching current	16 A
	Contact type	1 Form C (NO/NC)
	Coil resistance	240 Ω
	Switching Voltage (AC)	400 V
	Coil type	bistable
	Contact material	AgNi 90/10
	Connection	PCB connection
	Coil voltage (DC)	12 V
