6-1393215-9 | Schrack
Relay, 1 Form C (NO/NC), 12 V (DC), 330 Ω, 8 A, 400 V (AC), monostable, 6-1393215-9
Unit Price (€ / pc.)
30.7496 € *
Available: 27 pcs.

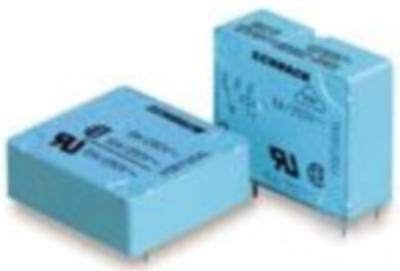

Power relays, type TE Connectivity/Schrack E.
Vertical, wash-proof, monostable; Air gaps and creepage distances coil/contact: > 4.0 mm. Rated voltage: 240 VAC. Switching voltage: max. 400 VAC. Load switching capacity (4.0 s): 15 A. Dielectric strength coil/contact: 4000 VRMS. Response/release time: typically 7.0/3.0 ms. Relay protection class RT III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.
With single contacts AgNi 20 and 1 x CO.
Rated current: 8.0 A. Breaking capacity: max. 2000 VA.
Technical attributes (type, rated coil voltage, coil resistance (±10 %, as of 1200 ohm ±15%), rated coil power): 6-1393215-9, 12 VDC, 330 ohm, 436 mW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| switching current | 8 A | |
| Coil resistance | 330 Ω | |
| Coil voltage (DC) | 12 V | |
| Switching Voltage (AC) | 400 V | |
| Connection | PCB connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| Coil type | monostable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Bar with 20 pieces |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
