5-1415430-9 | Schrack
Relay, 2 Form C (NO/NC), 24 V (DC), 580 Ω, 16 A, 400 V (AC), monostable, 5-1415430-9
Order No.: 25G1724
EAN: 4099889391930
MPN:
5-1415430-9
0430 07 1016 00
This item is no longer available.
As an alternative, we recommend the following item:
Relay, 2 Form C (NO/NC), 10 A, 250 V (AC), 0430 07 1006 00
Order No.: 25G1725
Manufacturer: Schrack
per pc. 29.5358 € *

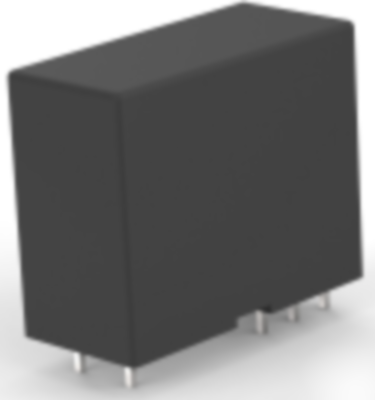

Power relay, 5-1415430-9, SCHRACK
Features
- PCB mount
- DC coil
- 4 kV/8 mm coil-contact
Applications
- Motors
- Electro valves
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 2 Form C (NO/NC) | |
| switching current | 16 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 580 Ω | |
| Switching Voltage (AC) | 400 V | |
| Connection | plug-in connection | |
| Coil type | monostable | |
| Contact material | AgCdO |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
