4-2158100-7 | Schrack
Relay, 1 Form C (NO/NC), 24 V (DC), 1086 Ω, 16 A, 300 V (DC), monostable, 4-2158100-7
Unit Price (€ / pc.)
1.6898 € *
Available in 5 Days: 18,845 pcs. - if ordered today
Total Price:
253.47 € *
Price list
Quantity
Price per unit*
150 pcs.
1.6898 €
300 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale

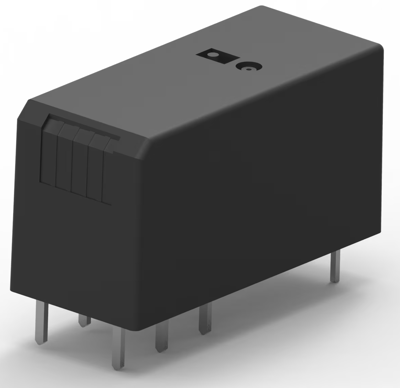

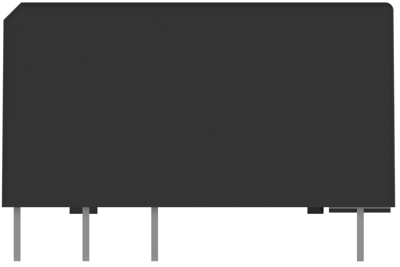

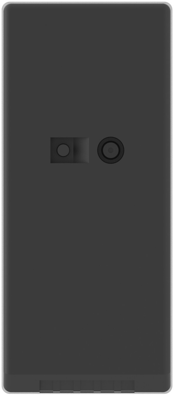

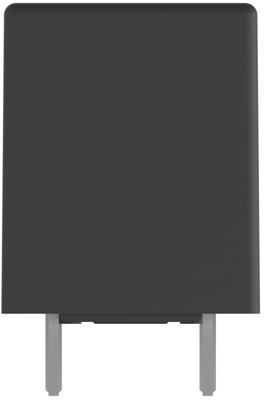

Power relay, 4-2158100-7, Schrack
Power relay, Standard, Monostable, DC, 530 mW Coil Power Rating DC, 1086 Ω Coil Resistance, UL Coil Insulation Class F.
Applications
- Household appliances
- Boiler control
- Garage door control
- Timers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Switching Voltage (DC) | 300 V | |
| switching current | 16 A | |
| Coil resistance | 1086 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Coil type | monostable | |
| Connection | PCB pin | |
| Contact material | AgNi 90/10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
