4-2158100-6 | Schrack
Relay, 1 Form C (NO/NC), 12 V (DC), 272 Ω, 16 A, 400 V (AC), monostable, 4-2158100-6
Unit Price (€ / pc.)
2.2372 € *
Available in 5 Days: 14,235 pcs. - if ordered today
Total Price:
223.72 € *
Price list
Quantity
Price per unit*
100 pcs.
2.2372 €
300 pcs.
2.2015 €
*incl. VAT plus shipping costs
Subject to prior sale

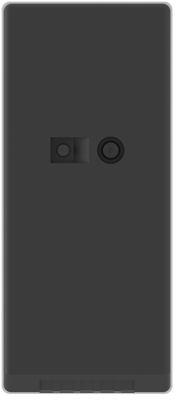

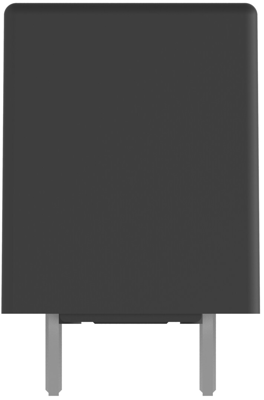

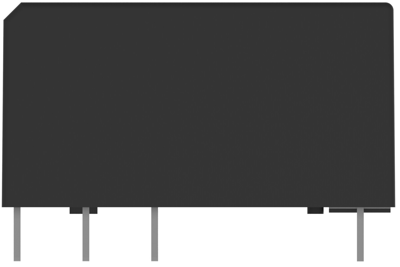

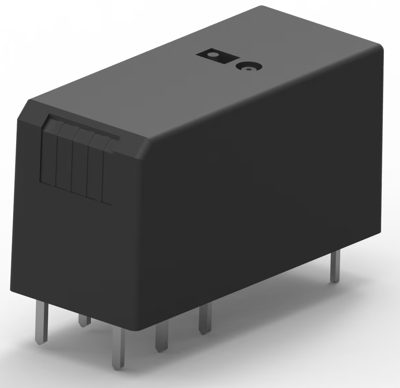

Power relay, 4-2158100-6, Schrack
Power relay, Standard, Monostable, DC, 530 mW Coil Power Rating DC, 272 Ω Coil Resistance, UL Coil Insulation Class F.
Applications
- Household appliances
- Boiler control
- Garage door control
- Timers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 12 V | |
| switching current | 16 A | |
| Coil resistance | 272 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable | |
| Connection | PCB pin | |
| Contact material | AgNi 90/10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
