4-1393240-8 | Schrack

Relay, 1 Form A (N/O), 24 V (DC), 360 Ω, 16 A, 400 V (AC), monostable, 4-1393240-8

Order No.: 30G6258
EAN: 4099889394788
MPN:
4-1393240-8
RT334024
Series: RT1
4-1393240-8 Schrack Industrial Relays Image 1
4-1393240-8 Schrack Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
3.0226 € *
Available: 1,075 pcs.
Available in 5 Days: 7,943 pcs. - if ordered today
Total Price:
3.02 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0226 €
10 pcs.
2.8084 €
25 pcs.
2.6180 €
50 pcs.
2.3800 €
*incl. VAT plus shipping costs
Subject to prior sale

Power relay, type TE Connectivity/Schrack RT1.

For DC or AC voltage, automatic soldering-proof; Grid: 3.5 or 5.0 mm. Air gap/creepage distance: min. 10 mm between contacts and coil. Contact material: AgNi 90/10. Rated voltage: 250 VAC. Switching voltage: max. 400 VAC. Rated current: 12 or 16 A. Breaking capacity: max. 3000 VA (at 12 A), 4000 VA (at 16 A). Dielectric strength coil/contact: 5000 VRMS. Rated coil power: 400 mW (DC coil), 0.74 VA/50 Hz (AC coil). Response/release time: max. 8.0/6.0 ms. Relay protection class RT II. Overvoltage category: III. Ambient temperatures: –40 to +85 °C (DC coil), –40 to +70 °C (AC coil). Certifications: VDE, UL, CSA etc.

With 1 x NO contact, rated current 16 A.

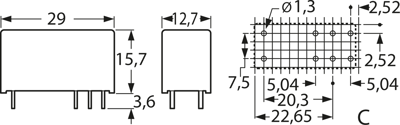

Technical attributes (type, rated coil voltage, coil resistance (±10 %, at 230 VAC ±15%), grid (RM), figure): 4-1393240-8, 24 VDC, 1440 ohm, 5.0 mm, C

Technical specifications
Filter Property Value
Contact material AgNi 90/10
Coil type monostable
Switching Voltage (AC) 400 V
Coil voltage (DC) 24 V
Coil resistance 360 Ω
switching current 16 A
Contact type 1 Form A (N/O)
Connection PCB connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85364900
Original Packaging Bar with 20 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
