4-1393239-5 | Schrack
Relay, 1 Form A (N/O), 5 V (DC), 100 Ω, 10 A, 400 V (AC), monostable, 4-1393239-5
Unit Price (€ / pc.)
4.1412 € *
Available in 5 Days: 868 pcs. - if ordered today
Total Price:
4.14 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1412 €
10 pcs.
3.8437 €
25 pcs.
3.5938 €
50 pcs.
3.2606 €
*incl. VAT plus shipping costs
Subject to prior sale

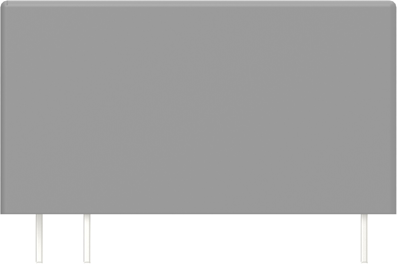

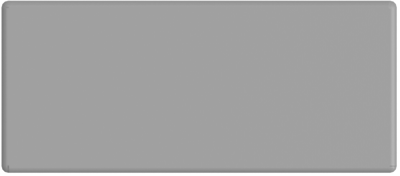

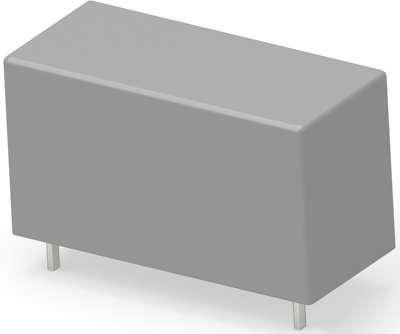

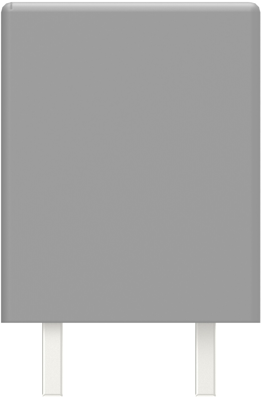

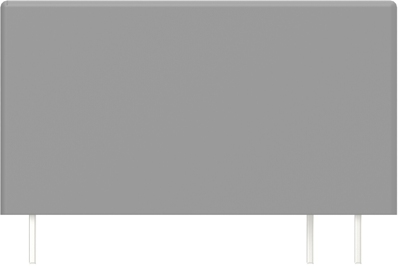

Power relay, 4-1393239-5, Schrack
Power relay, Standard, Monostable, DC, 250 mW Coil Power Rating DC, 100 Ω Coil Resistance.
Features
- Reinforced insulation
Applications
- Domestic appliances,
- Heating control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil type | monostable | |
| Coil resistance | 100 Ω | |
| switching current | 10 A | |
| Connection | plug-in/PCB connection | |
| Switching Voltage (AC) | 400 V | |
| Contact material | AgNi 90/10 | |
| Coil voltage (DC) | 5 V | |
| Contact type | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
