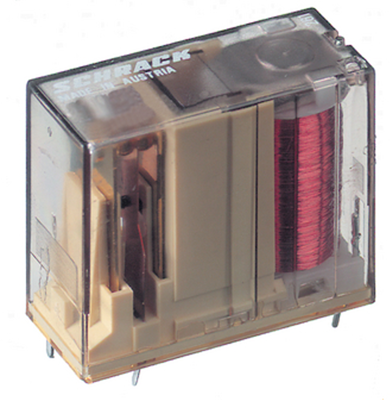

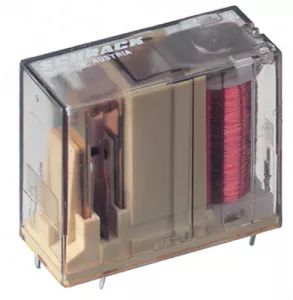

Relay 1 Form A (NO), 12 V (DC), 270 Ω, 16 A, 400 V (AC), monostable, 4-1393230-7
Active
Product by Schrack at Bürklin Elektronik
Power relay, type TE Connectivity/Schrack RP II/1.
Suitable for automatic soldering lines, or wash-proof; Grid: 3.5 mm or 5.0 mm. Contact type: 1 x CO, or 1 NO (single contact). Contact material: AgNi 0.15 or AgCdO. Rated voltage: 250 VAC. Rated current: 8.0, 12 or 16 A. Breaking capacity: max. 2000, 3000 or 4000 VA. Coil/contact dielectric strength: 4000 VRMS. Coil power: 500 mW. Response/release time: 8.0/2.0 ms. Degree of protection: RT II or RT III. Degree of soiling: 3. Overvoltage category: III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.
Suitable for automatic soldering lines, 1 x NO, 16 A rated current, type RP.
Rated current: 25 A. Breaking capacity: max. 4000 VA. Contact material: AgCdO. Degree of protection: RT II.
Technical attributes (type, rated voltage, coil resistance (12 VDC, ±10 %; 24 VDC ±15 %), grid): 4-1393230-7, 12 VDC, 270 ohm, 5.0 mm
| Connection | PCB connection | |
| Contact type | 1 Form A (NO) | |
| Contact material | AgCdO | |
| Switching Voltage (AC) | 400 V | |
| switching current | 16 A | |
| Coil voltage (DC) | 12 V | |
| Coil type | monostable | |
| Coil resistance | 270 Ω |
| Country of origin | TW |
| Customs tariff number | 85364900 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
