3-1419136-9 | Schrack
Relay, 1 Form C (NO/NC), 6 V (DC), 90 Ω, 16 A, 400 V (AC), bistable, 3-1419136-9
Unit Price (€ / pc.)
   7.4018 €  *
   Available in 5 Days: 536 pcs. - if ordered today
 Total Price:
  7.40 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 7.4018 €
 5 pcs.
 7.0210 €
 10 pcs.
 6.5688 €
 25 pcs.
 5.9857 €
  *incl. VAT plus shipping costs
  Subject to prior sale

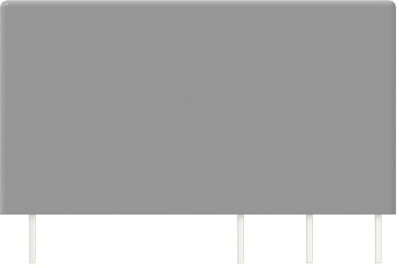

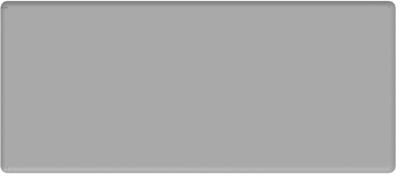

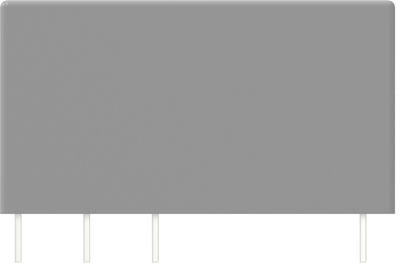

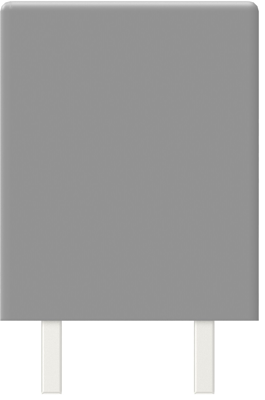

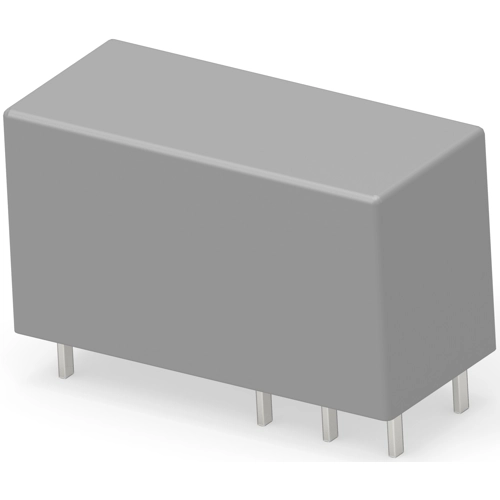

 Power relay, 3-1419136-9, Schrack
Power relay, Standard, Bistable, 1 Coil, Polarized, 400 mW Coil Power Rating DC, 90 Ω Coil Resistance.
Features
- Reinforced insulation
Applications
- Boiler control
- Garage door control
- POS automation
- Interface modules
- Timers
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 6 V | |
| switching current | 16 A | |
| Coil resistance | 90 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Switching Voltage (AC) | 400 V | |
| Coil type | bistable | |
| Connection | plug-in/PCB connection | |
| Contact material | AgSnO2 |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | AT |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
