3-1415353-1 | Schrack
Relay, 3 Form A (N/O) + 1 Form B (N/C), 24 V (DC), 480 Ω, 8 A, 400 V (AC), 3-1415353-1
Unit Price (€ / pc.)
24.0618 € *
Available in 5 Days: 9,948 pcs. - if ordered today
Total Price:
24.06 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0618 €
2 pcs.
22.5148 €
5 pcs.
21.1463 €
10 pcs.
19.6588 €
*incl. VAT plus shipping costs
Subject to prior sale

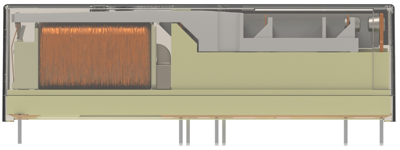

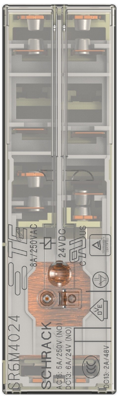

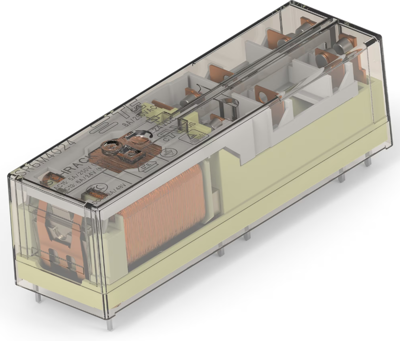

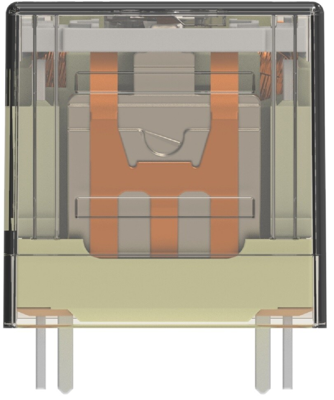

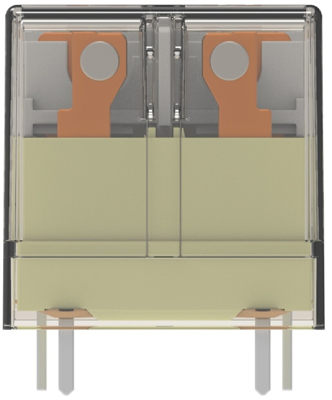

Force guided relay, 3-1415353-1, Schrack
Power relay, Force-Guided, 1200 mW Coil Power Rating DC, 480 Ω Coil Resistance, 24 VDC Coil Voltage, 3 Form A (NO) + 1 Form B (NC).
Applications
- Emergency shut-off
- Press control
- Machine control
- Elevator and escalator control
- Safety relays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 480 Ω | |
| Contact type | 3 Form A (N/O) + 1 Form B (N/C) | |
| Connection | PCB pin | |
| switching current | 8 A | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 400 V | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
