3-1393240-5 | Schrack

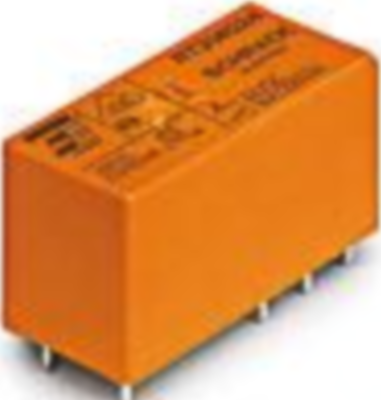

Relay, 1 Form A (N/O), 24 V (DC), 1.44 kΩ, 16 A, 400 V (AC), monostable, 3-1393240-5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.1523 € *
Available: 22 pcs.
Available in 5 Days: 43 pcs. - if ordered today
Total Price:
6.15 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1523 €
10 pcs.
5.7120 €
25 pcs.
5.3312 €
50 pcs.
4.8552 €
*incl. VAT plus shipping costs
Subject to prior sale
Power relay, type TE Connectivity/Schrack RT1 Inrush.
With reinforced insulation. Sensitive; Grid: 5.0 mm. Contact type: 1 NO (single contact). Contact material: AgSnO2. Rated voltage: 240 VAC. Rated current: 16 A. Breaking capacity: max. 4000 VA. Contact/coil dielectric strength: 5000 VRMS. Coil power: 400 mW. Response/release time: 8.0/3.0 ms. Degree of protection: RT II. Degree of soiling: 3. Overvoltage category: III. Ambient temperatures: –40 to +85 °C. Certifications: VDE, UL, CSA.
Technical attributes (type, rated voltage, coil resistance ±10 %): 3-1393240-5, 24 VDC, 1440 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form A (N/O) | |
| switching current | 16 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 1.44 kΩ | |
| Switching Voltage (AC) | 400 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Grid | 5 mm | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | CZ |
| Original Packaging | Bar with 20 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
