3-1393239-5 | Schrack
Relay, 1 Form A (N/O), 230 V (AC), 32500 Ω, 12 A, 400 V (AC), monostable, 3-1393239-5
Unit Price (€ / pc.)
9.2820 € *
Available in 5 Days: 1,363 pcs. - if ordered today
Total Price:
9.28 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2820 €
5 pcs.
8.8060 €
10 pcs.
8.2348 €
25 pcs.
7.5089 €
*incl. VAT plus shipping costs
Subject to prior sale

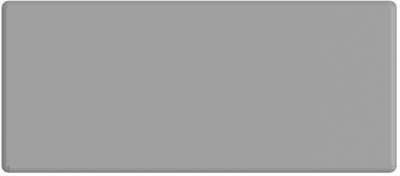

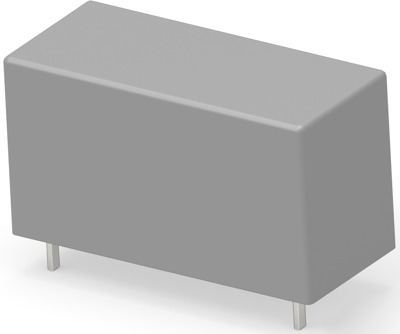

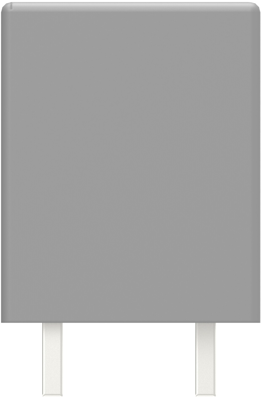

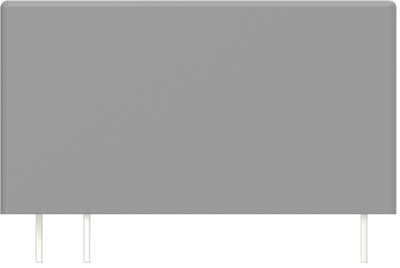

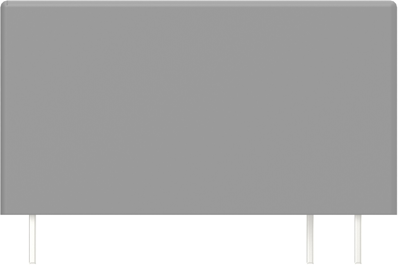

Power relay, 3-1393239-5, Schrack
Power relay, Standard, Monostable, AC, 0.74 VA Coil Power Rating AC, 32500 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Reinforced insulation
Applications
- Boiler control
- Garage door control
- POS automation
- Interface modules
- Timers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| switching current | 12 A | |
| Coil resistance | 32500 Ω | |
| Coil voltage (AC) | 230 V | |
| Contact type | 1 Form A (N/O) | |
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable | |
| Connection | plug-in/PCB connection | |
| Contact material | AgNi 90/10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
