2158100-4 | Schrack
Relay, 1 Form A (N/O), 12 V (DC), 270 Ω, 12 A, 300 V (DC), 400 V (AC), monostable, 2158100-4
Unit Price (€ / pc.)
2.2253 € *
Available in 5 Days: 30,060 pcs. - if ordered today

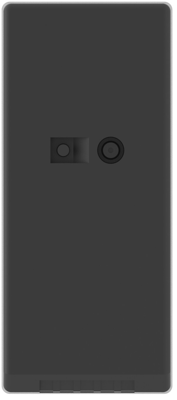

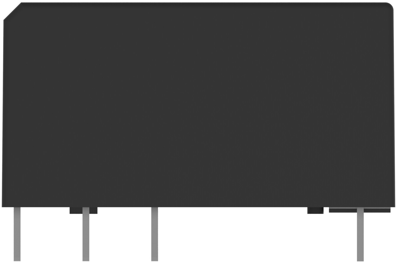

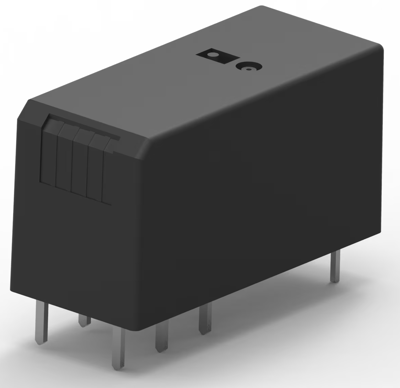

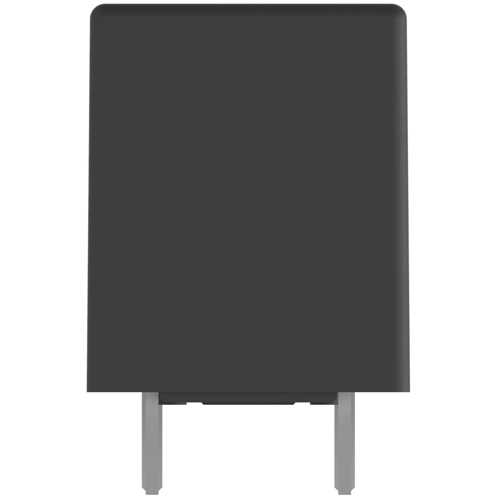

Power relay, 2158100-4, Schrack
Power relay, Standard, Monostable, DC, 530 mW Coil Power Rating DC, 270 Ω Coil Resistance, UL Coil Insulation Class F.
Applications
- Household appliances
- Boiler control
- Garage door control
- Timers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 270 Ω | |
| Switching Voltage (AC) | 400 V | |
| Connection | PCB pin | |
| Coil voltage (DC) | 12 V | |
| Contact material | AgNi 90/10 | |
| Switching Voltage (DC) | 300 V | |
| Coil type | monostable | |
| switching current | 12 A | |
| Contact type | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
