2-1415899-3 | Schrack

Relay, 1 Form C (NO/NC), 24 V (DC), 1.44 kΩ, 16 A, 400 V (AC), monostable, 2-1415899-3

Order No.: 30G910
EAN: 4099889396515
MPN:
2-1415899-3
RZ03-1C4-D024
Series: RZ

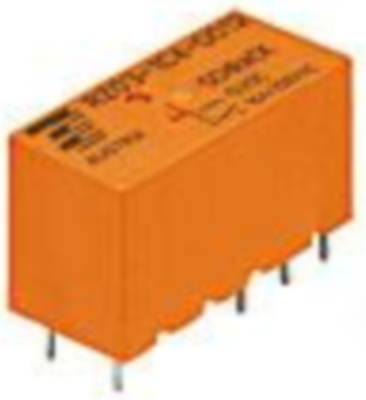

2-1415899-3 Schrack Industrial Relays Image 1

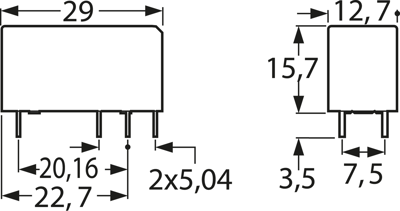

2-1415899-3 Schrack Industrial Relays Image 2
Image may differ
Unit Price (€ / pc.)
2.5228 € *
Available: 90 pcs.
Available in 5 Days: 7,265 pcs. - if ordered today
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
10 pcs.
2.3324 €
25 pcs.
2.1777 €
50 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale

Power relay, type TE Connectivity/Schrack RZ.

To IEC 60335-1; Rated voltage: 250 VAC. Rated current: 16 A. Breaking capacity: max. 4000 VA. Dielectric strength coil/contact: 5000 VRMS. Ambient temperatures: –40 to +85 °C. Contact material: AgNi 90/10. Certifications: VDE, cULus.

With 1 x CO contacts.

Technical attributes (type, rated coil voltage, coil resistance (±10 %), rated coil power): 2-1415899-3, 24 VDC, 1440 ohm, 400 mW

Technical specifications
Filter Property Value
Contact material AgNi 90/10
switching current 16 A
Coil resistance 1.44 kΩ
Contact type 1 Form C (NO/NC)
Coil type monostable
Connection PCB connection
Coil voltage (DC) 24 V
Switching Voltage (AC) 400 V
Logistics
Property Value
Original Packaging Bar with 20 pieces
Customs tariff number 85364900
Country of origin JP
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
