2-1415899-2 | Schrack
Relay, 1 Form C (NO/NC), 12 V (DC), 360 Ω, 16 A, 400 V (AC), monostable, 2-1415899-2
Unit Price (€ / pc.)
2.0111 € *
Available in 5 Days: 45,093 pcs. - if ordered today
Total Price:
2.01 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0111 €
10 pcs.
1.8683 €
25 pcs.
1.7493 €
50 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale

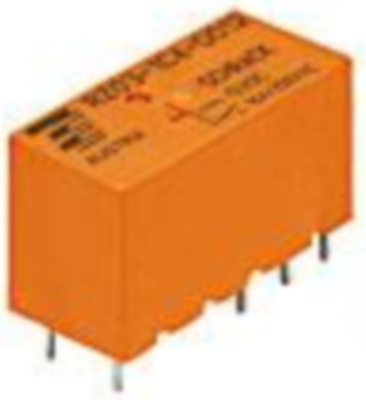

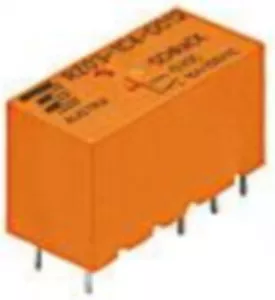

Power relay, type TE Connectivity/Schrack RZ.
To IEC 60335-1; Rated voltage: 250 VAC. Rated current: 16 A. Breaking capacity: max. 4000 VA. Dielectric strength coil/contact: 5000 VRMS. Ambient temperatures: –40 to +85 °C. Contact material: AgNi 90/10. Certifications: VDE, cULus.
With 1 x CO contacts.
Technical attributes (type, rated coil voltage, coil resistance (±10 %), rated coil power): 2-1415899-2, 12 VDC, 360 ohm, 400 mW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 360 Ω | |
| Contact material | AgNi 90/10 | |
| Coil voltage (DC) | 12 V | |
| Connection | PCB connection | |
| switching current | 16 A | |
| Contact type | 1 Form C (NO/NC) | |
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Bar with 20 pieces |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
