2-1393236-5 | Schrack
Relay, 1 Form A (N/O), 24 V (DC), 3.39 kΩ, 6 A, 400 V (AC), monostable, 2-1393236-5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.1876 € *
Available in 12 Days: 2,200 pcs. - if ordered today
Total Price:
7.19 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1876 €
5 pcs.
6.8068 €
10 pcs.
6.3665 €
25 pcs.
5.8072 €
*incl. VAT plus shipping costs
Subject to prior sale

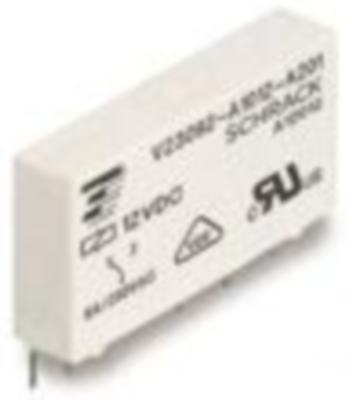

PCB relay, 2-1393236-5, SCHRACK
Features
- Only 5 mm wide
- Sensitive coil 170 mW
- Reinforced insulation (protection class II)
- Strong coil pins for DIN-rail socket
- Cadmium-free contacts
Applications
- Interface technology
- PLC’s
- Timers
- Centralized and decentralized heating control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form A (N/O) | |
| switching current | 6 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 3.39 kΩ | |
| Switching Voltage (AC) | 400 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
