2-1393224-7 | Schrack
Relay, 1 Form B (N/C), 12 V (DC), 627 Ω, 8 A, 400 V (AC), monostable, 2-1393224-7
Unit Price (€ / pc.)
3.9151 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9151 €
10 pcs.
3.6295 €
25 pcs.
3.3915 €
50 pcs.
3.0821 €
*incl. VAT plus shipping costs
Subject to prior sale

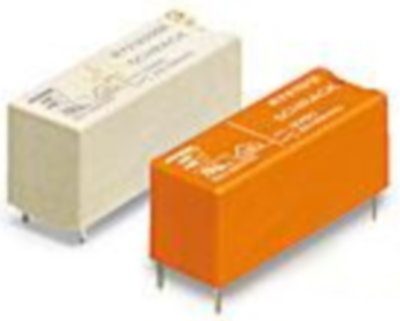

PCB relay, 2-1393224-7, SCHRACK
Features
- Low component height 12.3 mm
- 5 kV/8 mm coil-contact
- Reinforced insulation (protection class II)
Applications
- Heating control
- Interface technology
- Temperature control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form B (N/C) | |
| Coil type | monostable | |
| Connection | PCB connection | |
| Coil voltage (DC) | 12 V | |
| Contact material | AgNi 0.15 | |
| Coil resistance | 627 Ω | |
| switching current | 8 A | |
| Switching Voltage (AC) | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
