2-1393215-3 | Schrack
Relay, 1 Form C (NO/NC), 24 V (DC), 1.2 kΩ, 8 A, 400 V (AC), monostable, 2-1393215-3
Unit Price (€ / pc.)
18.2427 € *
Available in 5 Days: 514 pcs. - if ordered today

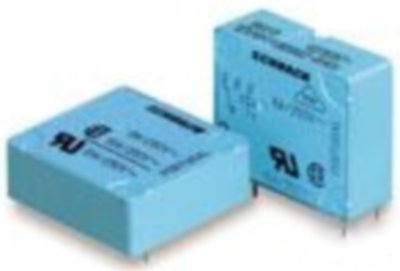

Power relay, type TE Connectivity/Schrack E.
Horizontal, wash-proof, monostable; Air gaps and creepage distances coil/contact: > 4.0 mm. Rated voltage: 240 VAC. Switching voltage: max. 400 VAC. Load switching capacity (4.0 s): 15 A. Dielectric strength coil/contact: 4000 VRMS. Response/release time: typically 7.0/3.0 ms. Relay protection class RT III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.
With single contacts AgNi 20 and 1 x CO.
Rated current: 8.0 A. Breaking capacity: max. 1250 VA.
Technical attributes (type, rated coil voltage, coil resistance (±10 %, as of 1200 ohm ±15%), rated coil power): 2-1393215-3, 24 VDC, 1200 ohm, 480 mW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| switching current | 8 A | |
| Coil resistance | 1.2 kΩ | |
| Coil voltage (DC) | 24 V | |
| Switching Voltage (AC) | 400 V | |
| Connection | PCB connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| Coil type | monostable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Bar with 20 pieces |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
