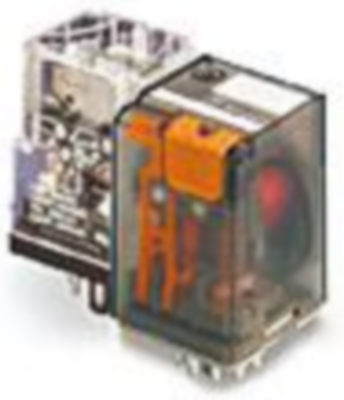

2-1393092-8 | Schrack

Name: Relay, 3 Form C (NO/NC), 230 V (AC), 8.3 kΩ, 20 A, 400 V (AC), monostable, 2-1393092-8
Brand: Schrack
SKU: 25G2138
Availability: InStock

Relay, 3 Form C (NO/NC), 230 V (AC), 8.3 kΩ, 20 A, 400 V (AC), monostable, 2-1393092-8

Order No.: 25G2138

EAN: 4099889392128

MPN:

2-1393092-8

MT338230

Series: MT

Image may differ

Key Specification:

Contact type 3 Form C (NO/NC)

switching current 20 A

Coil voltage (AC) 230 V

Coil resistance 8.3 kΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

29.2740 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

2,195.55 € *

Price list

Quantity

Price per unit*

75 pcs.

29.2740 €

150 pcs.

28.5838 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Multimode relay, 2-1393092-8, SCHRACK

Features

3 form C (CO) contacts
Mechanical indicator as standard
Electrical indicator

Applications

Mechanical engineering
Plant control

Technical specifications

Filter	Property	Value
	Coil resistance	8.3 kΩ
	Contact type	3 Form C (NO/NC)
	Connection	plug-in connection
	Coil voltage (AC)	230 V
	switching current	20 A
	Contact material	AgNi 90/10
	Coil type	monostable
	Switching Voltage (AC)	400 V
