1415898-5 | Schrack

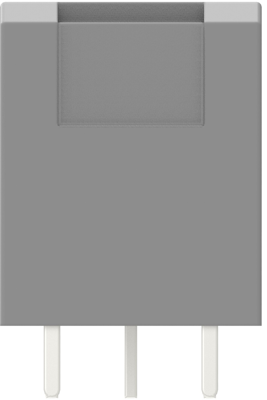

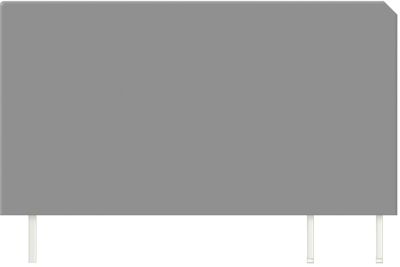

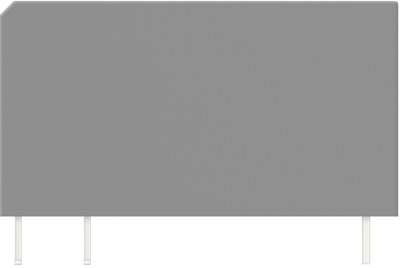

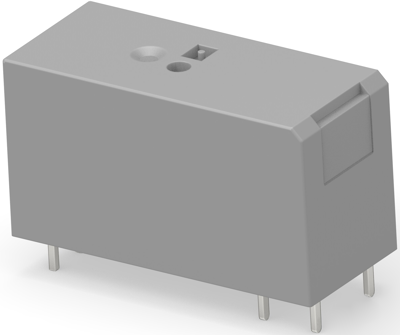

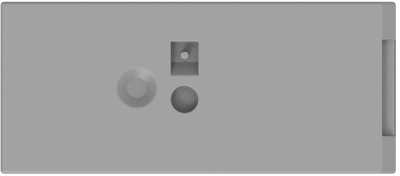

Relay, 1 Form A (N/O), 12 V (DC), 240 Ω, 16 A, 400 V (AC), bistable, 1415898-5
Unit Price (€ / pc.)
9.8889 € *
Available in 5 Days: 2,401 pcs. - if ordered today
Total Price:
9.89 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8889 €
10 pcs.
9.1749 €
25 pcs.
8.5680 €
50 pcs.
7.7945 €
*incl. VAT plus shipping costs
Subject to prior sale
Power relay, 1415898-5, Schrack
Power relay, Standard, Bistable, 2 Coils, Polarized, 600 mW Coil Power Rating DC, 240 Ω Coil Resistance.
Features
- Reinforced insulation
Applications
- LED lighting systems
- Filament and incandescent lamp loads
- Movement detectors
- Light sensors
- Intelligent wall sockets
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | AgSnO2 + W | |
| switching current | 16 A | |
| Connection | plug-in/PCB connection | |
| Contact type | 1 Form A (N/O) | |
| Switching Voltage (AC) | 400 V | |
| Coil type | bistable | |
| Coil voltage (DC) | 12 V | |
| Coil resistance | 240 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
